Portable type 6-in-1 multi gas detector alarm handheld C2H4 CO2
carbon monoxide gas leak detector
Product Description
BTQ-YA-C100FT Handheld Gas Detector Portable Multi Gas Analyzer
with CE FCC ROSH Certificate
Product overview
BTQ-YA-C100FT series portable composite gas detector is widely used
in chemical industry, petroleum, metallurgy, liquefied gas station,
painting operation, gas transmission and distribution and other
toxic, combustible gas generation, storage, use and other indoor
and outdoor easy to leak dangerous places. BTQ-YA-C100FT series
portable compound gas detector is a portable gas detector developed
by our company with practical functions and easy operation.

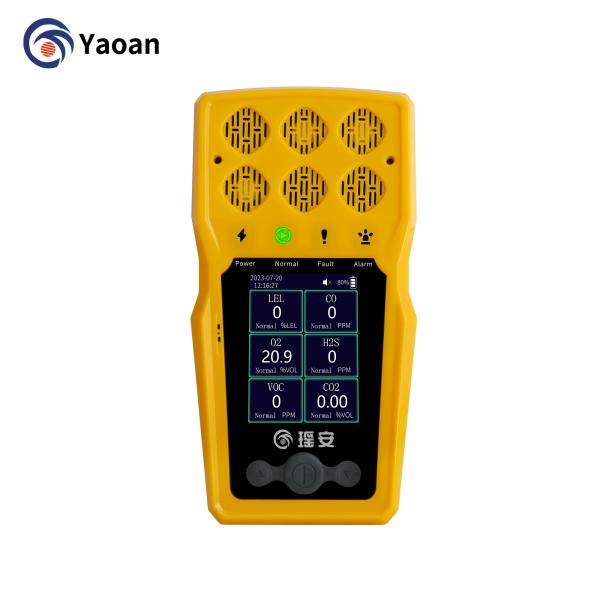

The product uses 2.8-inch TFT LCD HD display, with sound, light and
vibration triple alarm, sensor data collection and data processing
through the single chip microcomputer, and finally complete the
data display, alarm and record functions.
Specifications
| Product name | Portable Multi Gas Detector |
| Power source | Lithium-ion battery 18650/1S2P/5800mAh/3.7V |
| Working hours | ≥10 hours |
| Charging time | ≤4 hours |
| range | Combustible: (0-100) %LEL Toxic: (0-1000) μmol/mol (determined by
sensor) |
| precision | ±5%FS (sensor determined) |
| Minimum reading | Combustible: 1% LEL(determined by sensor) Toxic
0.1μmol/mol(determined by sensor) |
| Response time (T90) | ≤60 seconds |
| Sensor life | 24 months (depending on the sensor) |
| Sensor type | Combustible: Catalytic combustion type (imported sensor) Toxic:
electrochemical type, infrared (imported sensor) |
| Detection mode | Diffusion type, pump type |
| Working mode | Long-term continuous work |
| Working temperature and humidity | -20～50℃,<95%RH |
| Explosion-proof mark | Ex d ib IIC T4 Gb |
| Explosion-proof certificate number | CE21.2122 |
| Class of protection | IP67 |
| weight | 700g |
Functions
1. Up to 6 gases, 1 combustible gas and 5 toxic gases can be
detected simultaneously.
2. 2.8-inch TFT LCD display, backlight brightness 10-level
adjustable.
3. Real-time display of gas concentration, time, temperature,
electricity.
4. Sound, light and vibration triple alarm.
5. Fault alarm, high and low alarm, low power alarm, suction pump
blocked or broken leakage alarm.
6. Green, yellow and red three color indicators, respectively
corresponding to normal, fault, alarm status.
7. Independent charging indicator light, charging red light, full
green light.
8. Three physical buttons, easy to operate.
9. Zero, calibration, calibration function.
10. With easy to operate high-performance low-power ARM
microprocessor, 5800mAh large-capacity battery, continuous use time
of up to 10 hours.
11. Switch record, alarm record and fault record query function, up
to 150,000 records can be stored, Type-C interface and computer
connection easy to export records.
12. System restore function, restore all Settings and clear all
data.
